Application Areas:

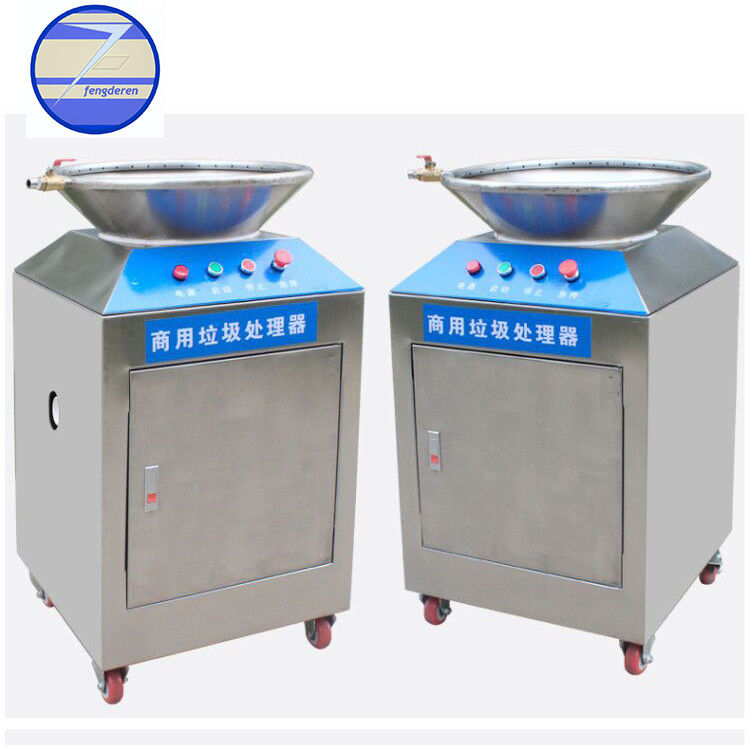

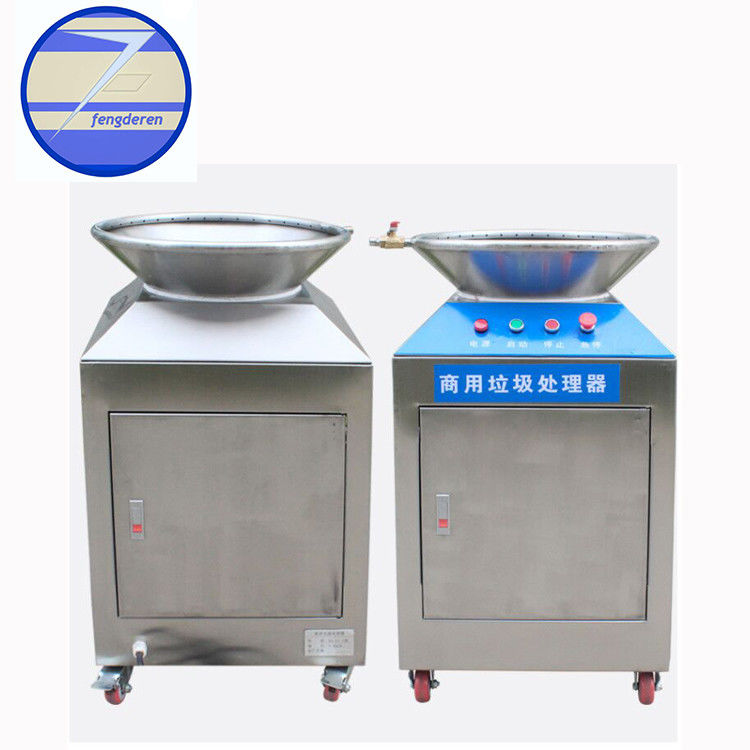

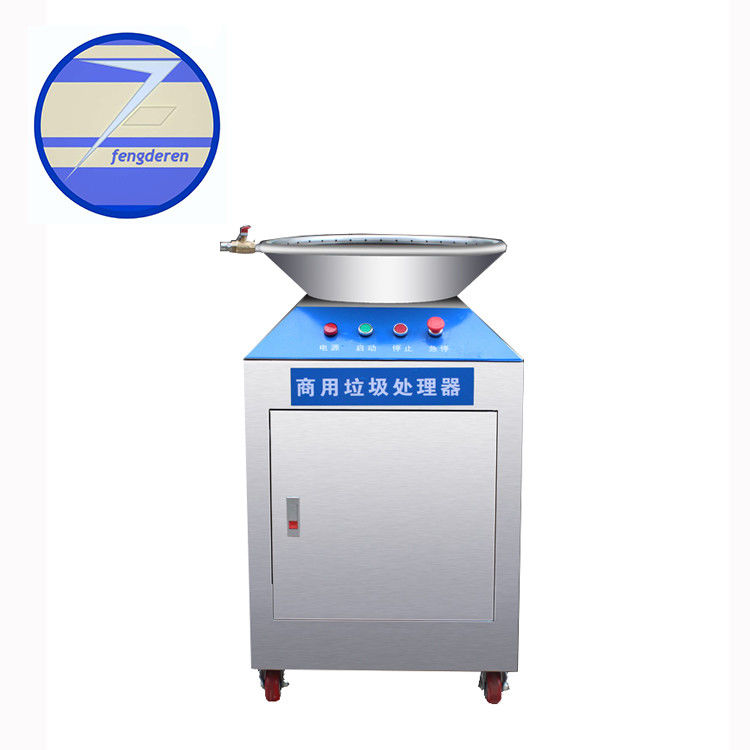

This machine is a new type of food waste disposer, which is widely used in the food waste treatment of kitchens in public places such as hotels, canteens, restaurants, hospitals, ships, etc.
Working Principle:
This machine adopts the principle of centrifugal collision and five-stage grinding technology. It uses high-speed rotating cutter head blades to break and grind food waste into fine particles. After the waste is ground, it is discharged into an oil-water separator to achieve solid and liquid separation, avoiding Secondary pollution, the separated liquid can be discharged directly into the sewer.
Machine Advantages:
The 50L large-capacity feeding hopper greatly reduces the frequency of manual feeding, saving time and labor; the large-diameter sewage outlet can ensure continuous processing of the machine without causing blockage.
The new 5-level grinding technology is used to easily crush various food wastes and grind more thoroughly.
First-level grinding: The garbage is beaten and hit by the grinding hammer in the horizontal or vertical direction, thereby crushing the garbage.
Secondary grinding: The waste is quickly cut under the action of double blades, thereby further fragmenting.
Three-level grinding: The garbage is thrown on the ring gear wall at high speed, and is squeezed and bitten by the teeth on the ring wall.
Four-level grinding: Through the interaction of the striking plate at the bottom of the grinding disc and the sharp edges of the round teeth, the waste is further cut and cut.
Five-stage grinding: After the rubbish passes the above four stages of grinding, it is filtered and cut.
The whole food waste disposer is made of stainless steel, which has the characteristics of wear resistance, corrosion resistance, and easy cleaning. The metal water inlet design has been added to facilitate cleaning and effectively prevent bacterial growth.
With one-button start, emergency stop button, automatic grinding and other functions. Equipped with overload and thermal leakage protection device, improve the safety factor.
Integrated grinding chamber, no welding points, stable body, good sealing, low noise, and waterproof function
Technical Parameters :
| Model | GP-50 | Drainage way | Grinding direct discharge |
| Power | 4KW | Sound insulation technology | Enclosed and Soundproof |
| Voltage | 380V | Security and Protection | Overload overheat protection |
| Current | 8.8A | The factory inspection | Idle for half an hour |
| Frequency | 50HZ | The thickness of the plate | 3mm |
| Capacity | 50 L | Size | 500*500*1000mm |
| Grinding technology | Double 5-step grinding | Weight | 70KG |
| Grinding speed | 2890r/Min | Daily processing capacity | 4-5 T |
| The motor | AC | Average water consumption | 2 T / Month |
