Stainless Steel Sugar/Peanut/Chocolate/Tablet Coating Machine Film Coating Machine

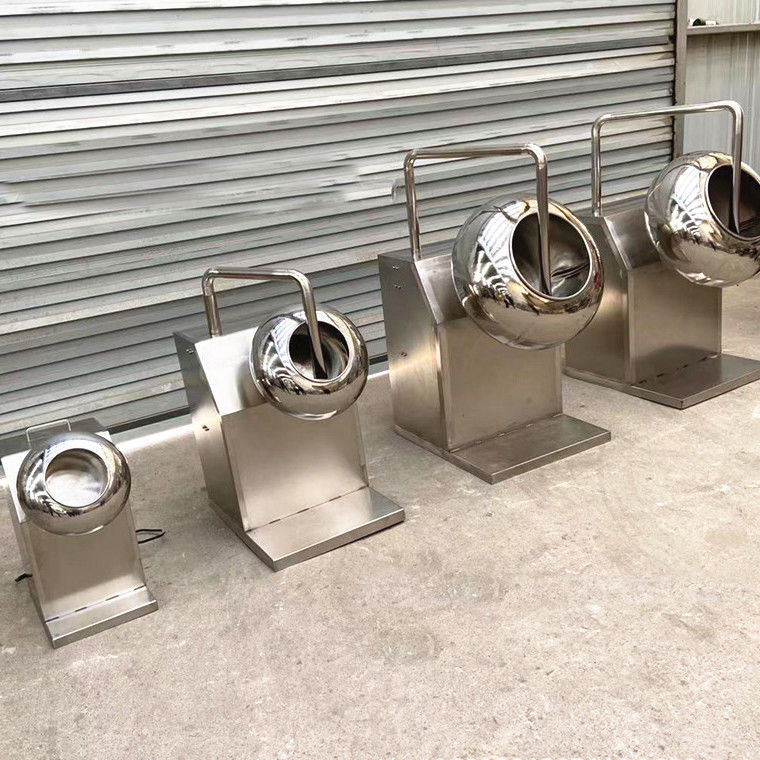

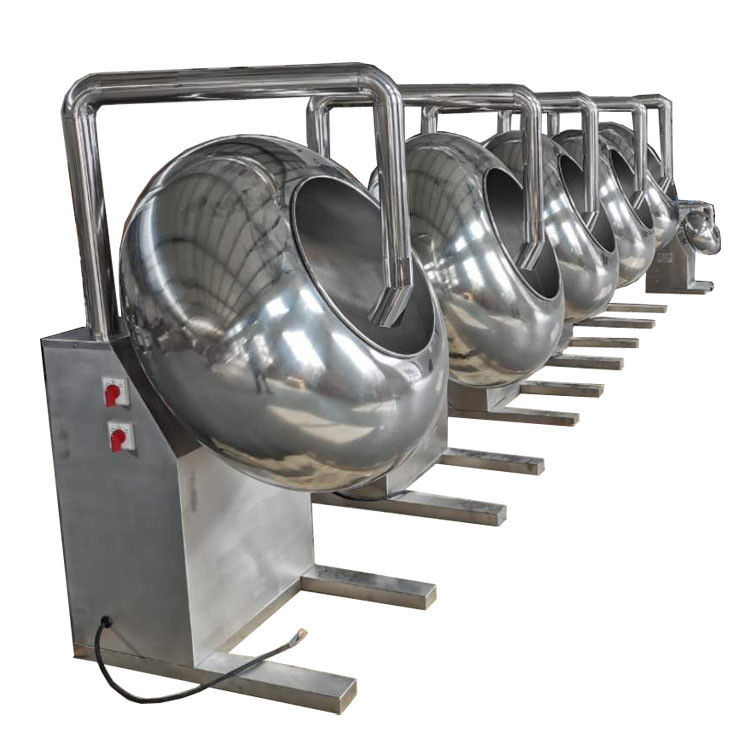

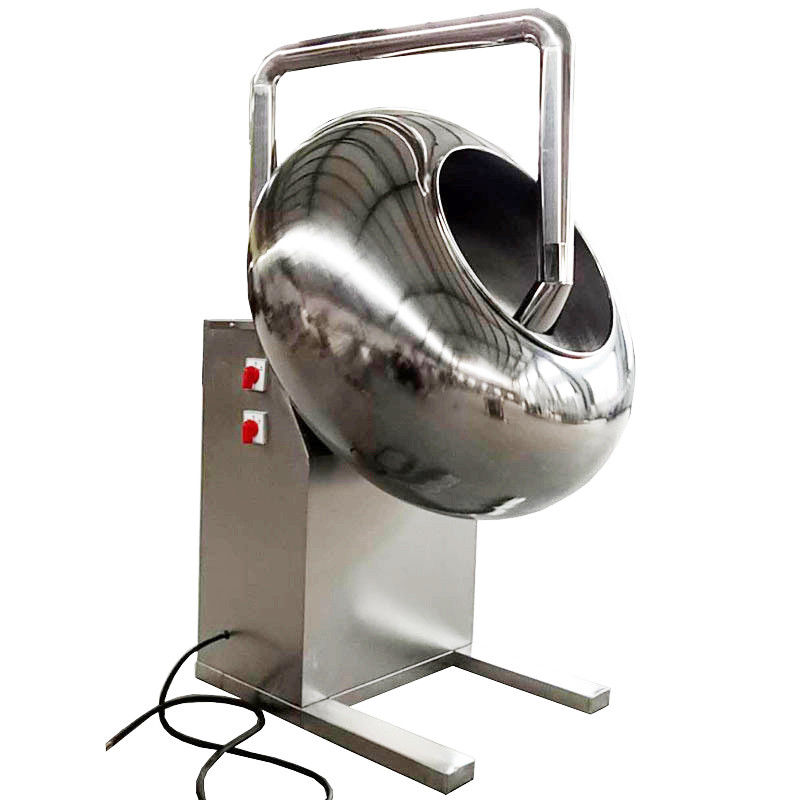

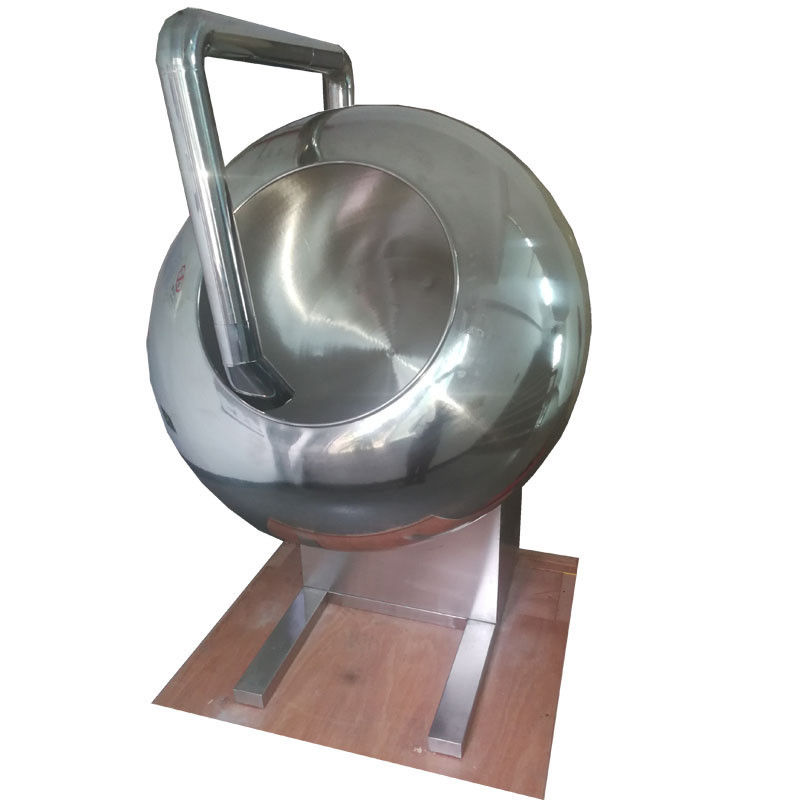

BTJ series sugar coating machine

Working principle:
In order to make the chip surface coated and crystallized evenly as soon as possible, and to achieve the purpose of polishing, it is necessary to spray the chip in the pot by hand and add the mixed syrup.By rotating the pot clockwise, the sugar-coated pieces are rolled in the pot, and the sliding friction and grinding make them evenly distributed on all the chips.At the same time to the pot with hot air, can quickly remove the surface of the tablet water, finally get qualified sugar-coated tablets and other finished products.
The polished sugar-coated tablet has a bright and bright appearance. The complete consolidated coating produced by the crystallization of sugar on the surface can not only prevent the chip from oxidizing, being affected with moisture or volatilization, but also cover the uncomfortable taste of the chip when taking, so as to facilitate the identification of the tablet and ease the dissolution of the stomach and intestines.
Structural characteristics of
(1) Movement of the machine: this series of machines are unidirectional, low-speed continuous rotation of the coating equipment, the main motor through the belt drive - worm worm gear drive to rotate the pot body.
(2) Structural characteristics
A. The adjusting handwheel is installed in the middle of the machine, which can be used to adjust the tilt Angle of the sugar-coating pot according to the tablet loading and material exchange performance.(The charge quantity of the nameplate is based on the pot body inclination Angle of 30O).
B. Worm gear and worm are adopted as the terminal output of the movement, which has the characteristics of stable operation and self-locking of the pot.
C, hot air drying device using resistance wire heating, and set up high and low temperature switch, easy to control.

Main uses:
This machine is suitable for the sugar-coating production of pills and tablets in pharmaceutical, food and chemical industries, and also for the rolling, mixing and polishing of spherical granular materials in food and chemical industries.
Product features
This machine is mainly composed of rotating host, adjustable heating air system, etc., stainless steel pot body in line with GMP standards.This machine is used for Chinese and western powder, particle, pellet, pill, pill, seed sugar coating, film coating and other common equipment, can also be used for food, feed, chemicals, plastics, ceramics and other industries for coating, ball, ball, round, polishing, mixing and so on.This machine has the advantages of simple operation, wide use, high efficiency, strong practicability and various functions.
