Automatic Vertical Weighing and Packing Machine

Automatic Vertical Weighing and Packing Machine

  • Place of Origin
    CHINA
  • Brand Name
    FENGDEREN
  • Model Number
    Custom model
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    WOODEN BOX
  • Delivery Time
    30 DAYS
  • Payment Terms
    T/T

Automatic Vertical Weighing and Packing Machine

Application:
 Suitable for packaging many different kinds of products; such as puffy  food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.

Technical characteristics :

1. Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4. IP65 grade water-proof and dust-proof design. It's clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be weighed, and prevent crushing and blocking of material.
6. With powerful digital automatic counting function. It can record the index for each batch such as total bag number, pass rate and difference of single bag, etc.
7. Optional devices: trigliyph balance ball, suction hopper, printing device, tolerance sorting device .

Product Parameters
TypeJT-720
Bag length100-500mm(L)
Bag width100-350mm(W)
Max width of roll film720mm
Packing speed20-25bags/min
Measuring range8000ml
Air consumption0.65mpa
Gas consumption0.4m³/min
Power voltage220V
Power6KW
Dimension(L)1700mm*(W)1470mm*(H)1700mm
Dead weight of machine1000Kg
Various models of machines can be customized according to the different needs of customers

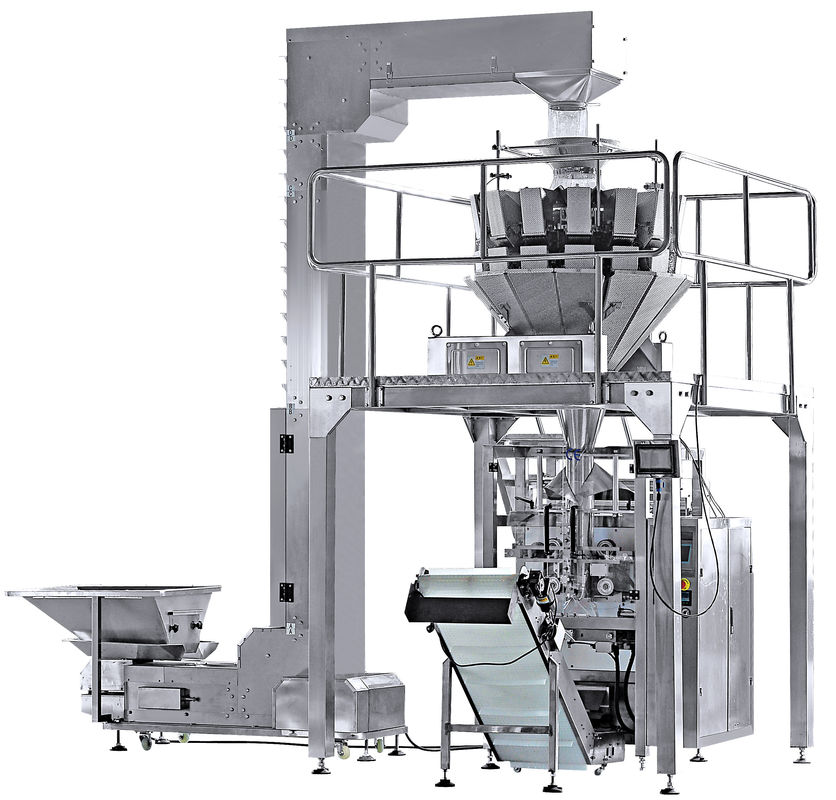

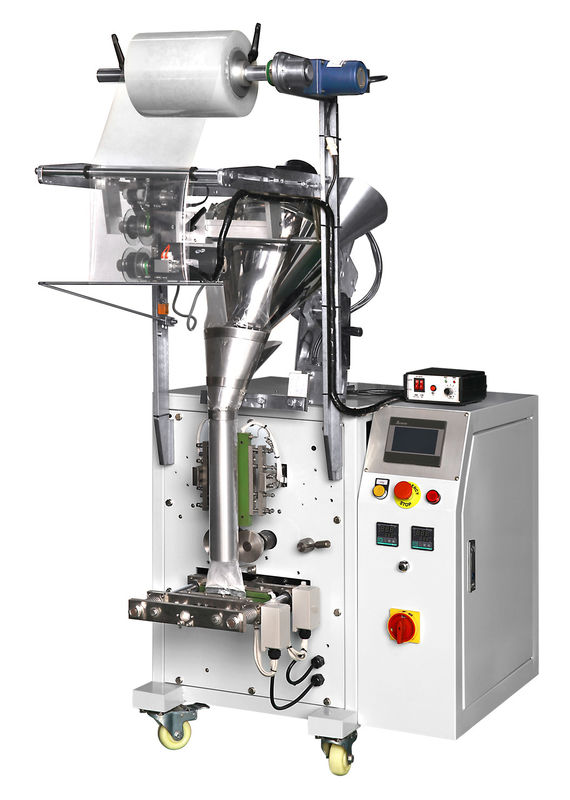

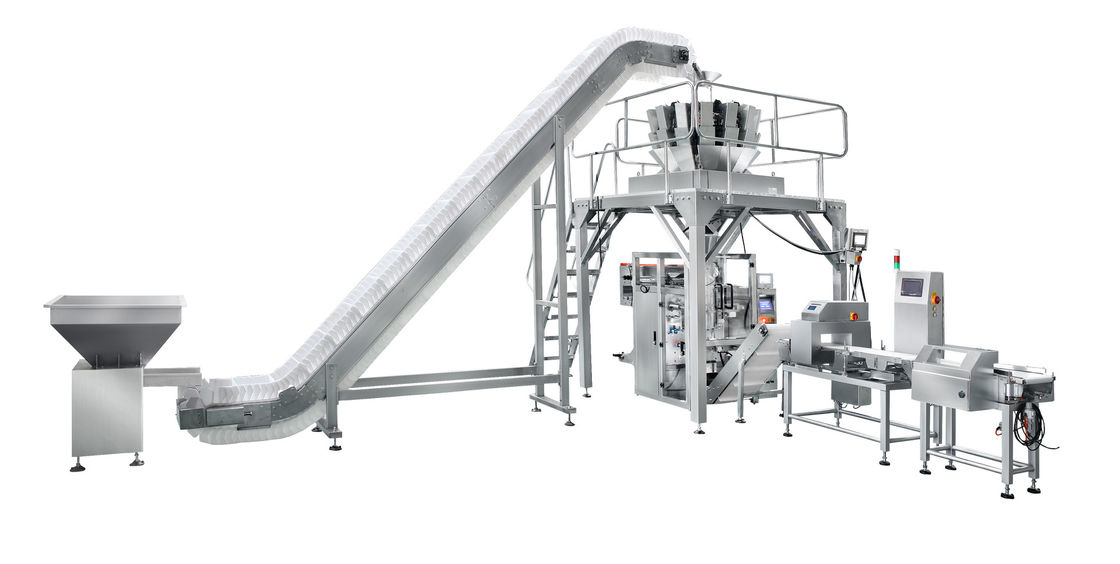

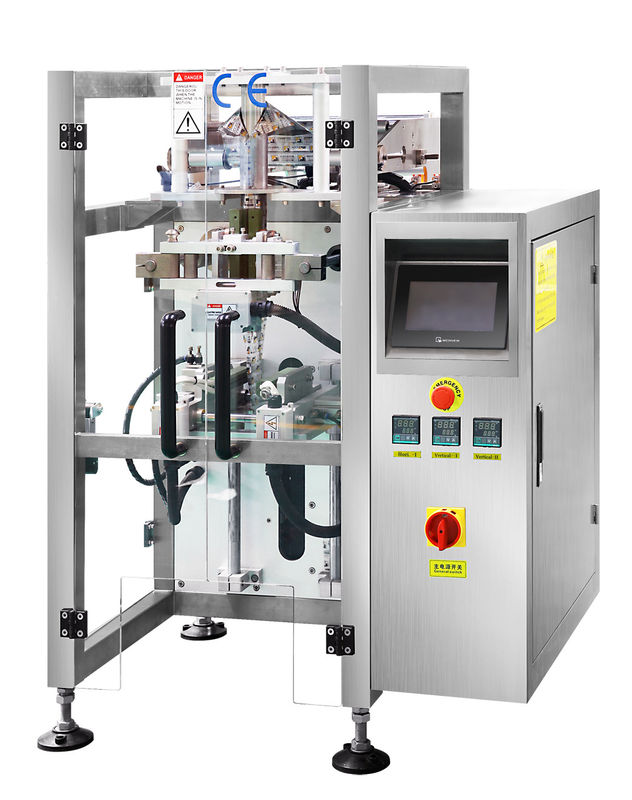

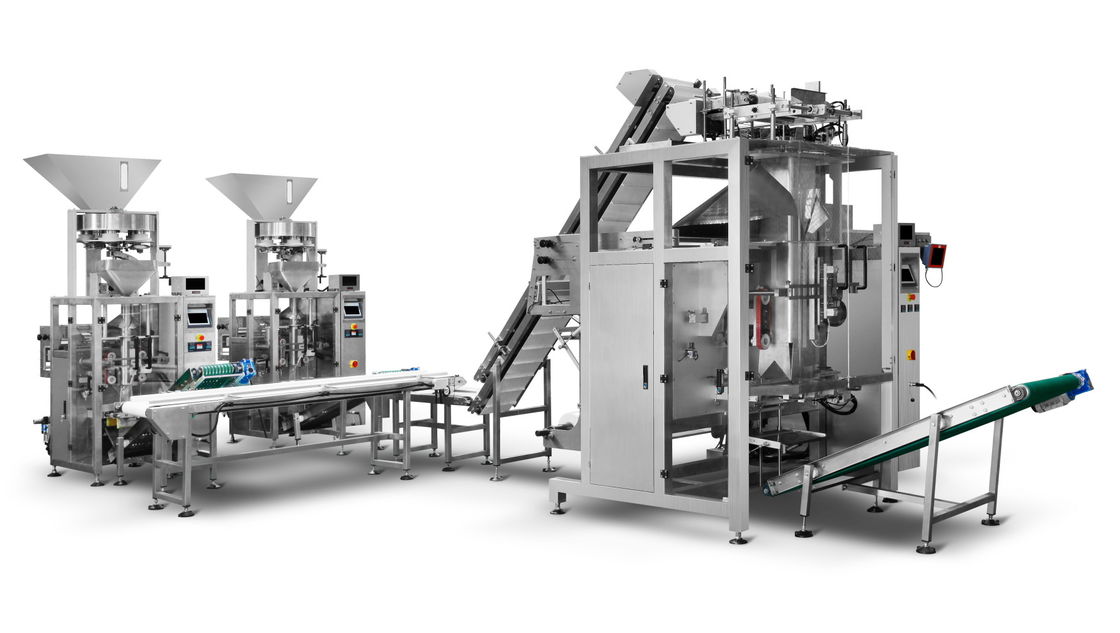

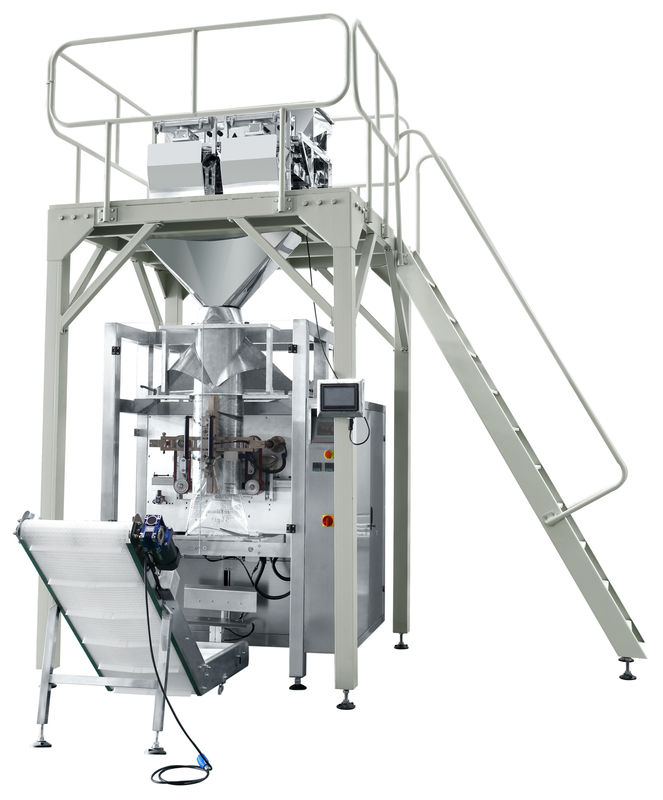

Detailed Photos
