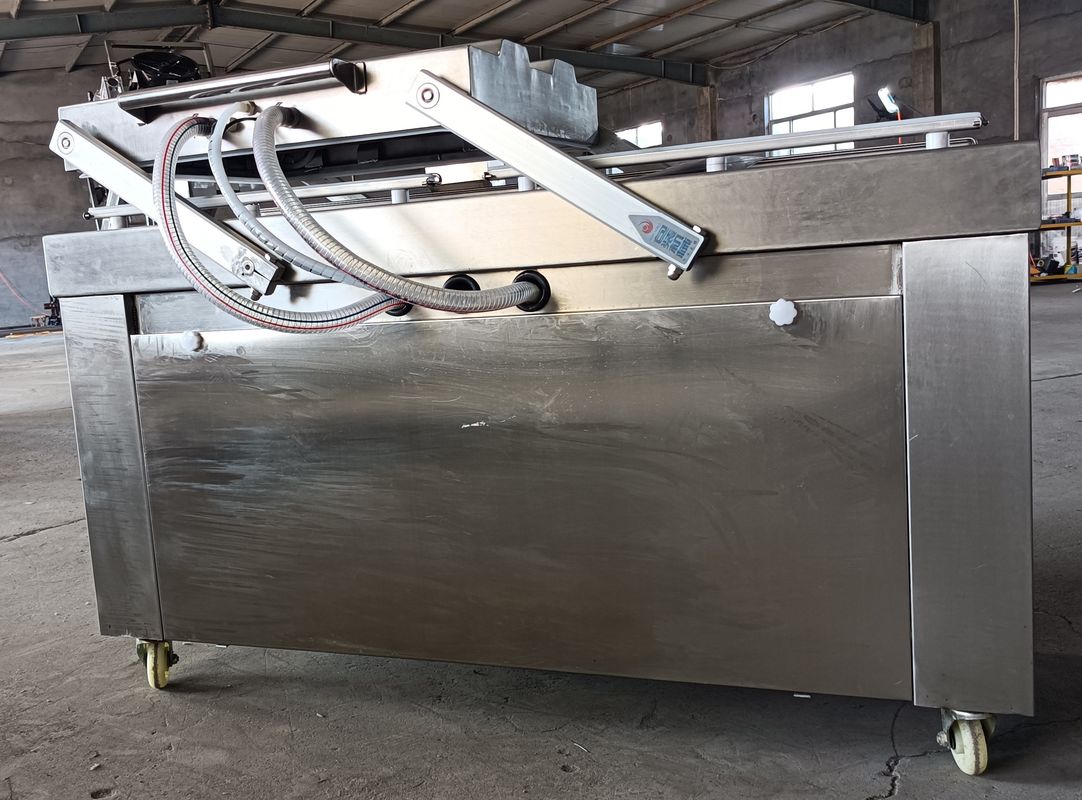

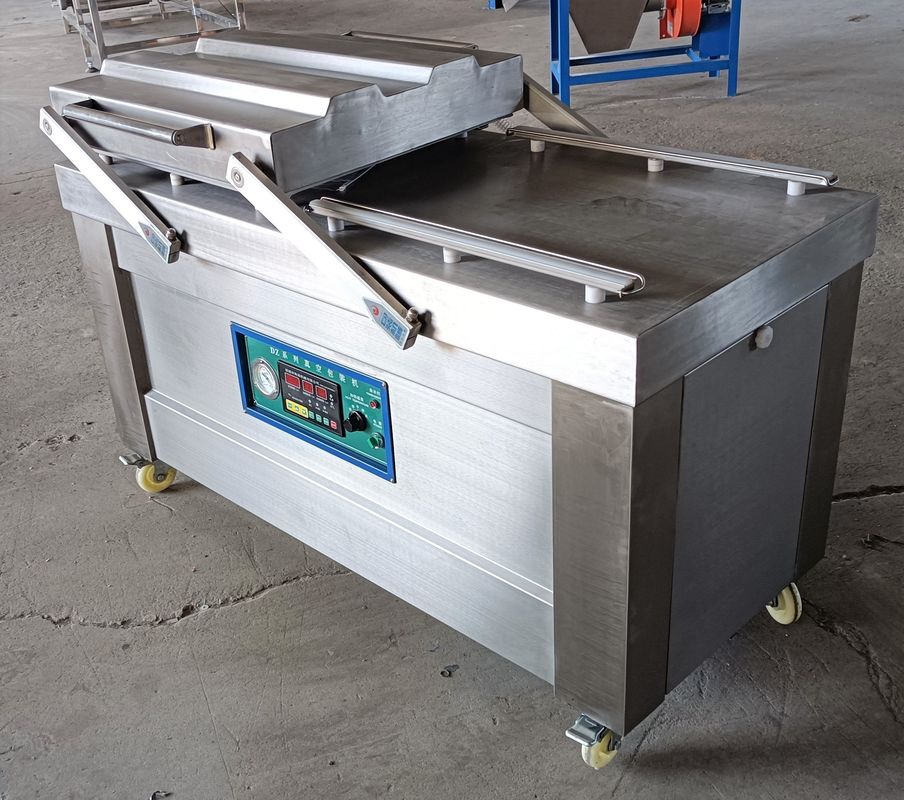

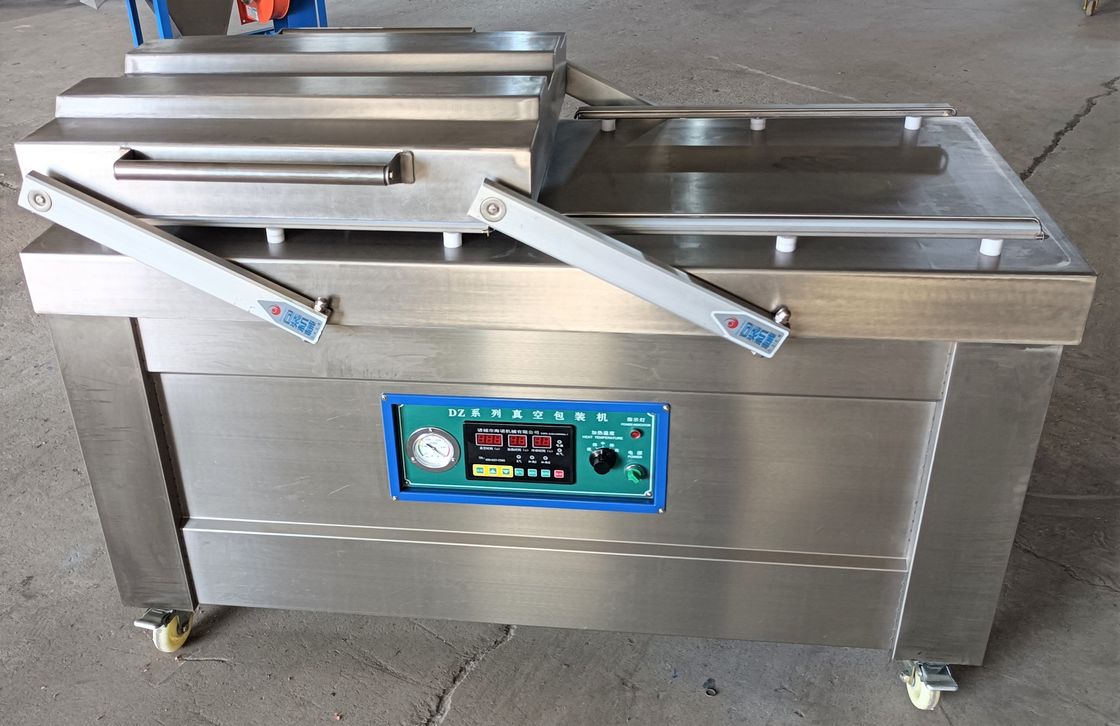

Dz-Series is a novel packaging machine.It is to automatically seal the package immediately after the vacuum is taken out, so that the vacuum inside the bag is high and the residual gas is less, thus inhibiting the reproduction of bacteria and other microorganisms, avoiding the mildew and corruption of articles, and prolonging the helpless storage time.In addition,for some soft items, vacuum can reduce the volume and facilitate transportation and storage.
Main configuration:
1, vacuum chamber :SUS304 8mm thick stainless steel plate, plate 12mm thickness, to solve the vacuum chamber cracking, deformation of the
problem, the whole equipment including the frame for all stainless steel material.
2, the original Germany imported 200 pump, environmental protection vacuum pump.
3, the heating system independently developed by our company (belonging to the company's patent) automatically tightens during the heating
process, extending the life of the heating strip, greatly reducing the frequent replacement of wearing parts. It is equipped with automatic alarm
device for broken heating strip. Independent control heating double transformer, easy to adjust temperature and heating time
4, computer control panel (company patent), with waterproof function, accurate memory, equipped with waterproof moistureproof 5, the studio for
vertical lifting, using bearing guide connecting rod structure, with good stability, It is not easy to wear, and has remarkable characteristics of
smooth lifting. 6, transmission system adopts integrated electric and electromagnetic brake, speed change belt, accurate positioning.
7, the control system adopts computer version, waterproof, steam proof, using imported Omron travel switch, independent sealing electrical control
electrical box.
8, Italy imported 7-layer corrosion resistant, anti-aging, anti-fade food-grade conveyor belt, Taiwan TYC imported stainless steel conveyor chain, wide
silica gel strip, aluminum magnesium alloy steel box, durable and not easy to deformation. Stainless steel sliding and fixed adjustment material
tray can be adjusted according to the size of the bag.
9, the equipment is equipped with 0-30 degree adjustment range, users can find their favorite comfortable Angle, saving time, labor and labor.
10, patent design, the frame adopts Swiss imported laser cutting process, high precision. The studio is vertical lifting, using bearing guide connecting
rod structure, with good stability, not easy to wear, smooth lifting and remarkable characteristics.
11. Anhydrous enhanced heating system, automatic tensioning in the heating process, prolong the life of the
heating strip, the Preheating function of the German heating strip (m-type imported heating strip can be used, the sealing part of oil and water
does not affect the beautiful sealing), greatly reduce the frequency of replacement of wearing parts (automatic alarm function of broken
strip). Improved transformer and electric heating rod, heating strip replacement is simple, longer service life, sealing more beautiful, the machine
can tilt 5 angles, can meet all kinds of packaging requirements, single operation, low labor intensity, can realize flow work, conveyor belt can be
washed with water.
12, the control system adopts computer board, waterproof, steam proof, relay is not comparable, using
imported Omron travel switch, France Schneider control switch. Built-in independent sealing stainless steel electrical box. Transmission system
adopts integrated electromagnetic brake, variable speed belt, slow start and stop conveying device, accurate positioning, low noise.
13, imported silica gel high elastic gasket .
14. The equipment is equipped with infrared ray scanning interlock system, which can stop the operation and enter the safe standby state when the operator's finger strays into the part of the work room, and enter the working state immediately after leaving, making the operation more safe and stable

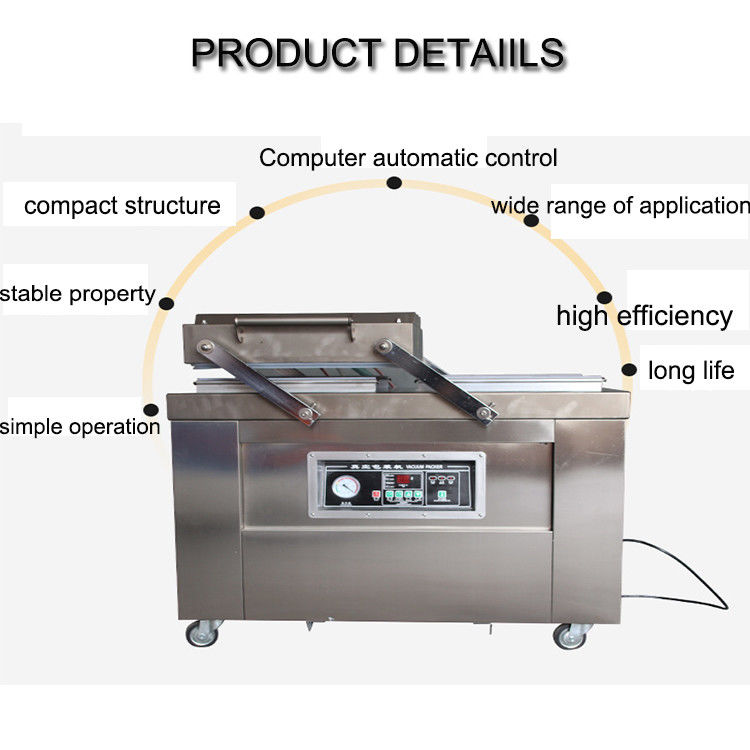

Two, machine features:
1. Save energy.
2. Low failure rate.
3, improve the service life of the heating strip and the thermal bonding quality of the packaging bag.
4, suitable for food, meat, fungi, seafood, chicken feet and a variety of leisure food.
| Model | DZ-400s | DZ-500-2s | DZ-600-2S | DZ-700-2S | DZ-800-2S | DZ-1000-2S |
| Power supply | 220V,50HZ | 380V,50HZ | ||||
| Motor power | 0.95 KW | 1.5 KW | 3 KW | 3 KW | 3 KW | 7 KW |
| Sealing power | 920 w | 500w | 1.6kw | 1.6kw | 2KW | |
| vacuum chamber material | SUS304 | |||||
| Speed | 2-5 time/min | |||||
| Sealing distance | 380 mm | 4200 mm | 500 mm | 550 mm | 660mm | 550 mm |
| Sealing width | 10mm | 10mm | 10mm | 10 mm | 10 mm | 10 mm |
| Sealing length | 400mm ,2 pcs | 500mm,2 pcs | 600mm,4pcs | 700mm ,4pcs | 800mm,4pcs | 1000mm,4pcs |
| Vacuum chamber size | 442*380*100 mm | 500*420*100 mm | 600*500*100mm | 700*550*100mm | 800*660*100mm | 1125*545*100mm |
| Vacuum pump | 20 model | 20 model *2 | 100 model | 100 model | 100 model | 200 model |
| Vacuum pressure | ≤ 20 pa | ≤ 40 pa | ≤ 100 pa | ≤ 100 pa | ≤ 100 pa | ≤ 200 pa |
| Weight | 170 KG | 200 KG | 220 KG | 280 KG | 360 KG | 820 KG |
| Dimension | 1115*655*920mm | 1260*650*950mm | 1620*820*940mmm | 1860*850*940 | 1860*950*1050mm | 1800*1660*1100mm |
Our products are sold all over the world, you can rest assured.
